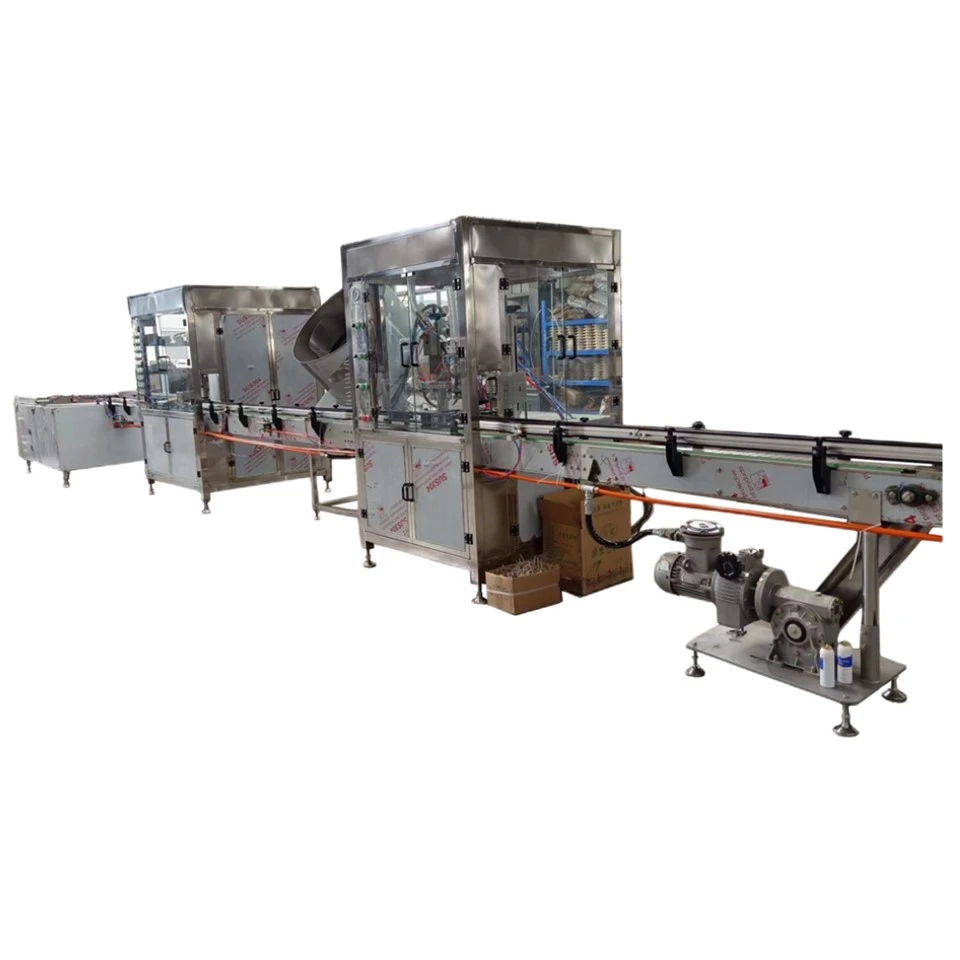

Automatic Filling Line
Complete filling lines for application-specific production requirements.
Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.
Published technical snapshot
- Capacity
- ≥100cans/min
- Max. filling volume of single head
- 250ml(Max 500ml)
- Gas pressure
- 0.6MPa
- Filling times of single filling head
- 2times
Manufacturer-published values. Final configuration is confirmed for the project.
Applications
Suitable applications
- Potential application category
- Personal care
- Potential application category
- Household
- Potential application category
- Industrial
- Potential application category
- Pharmaceutical
Key features
Complete filling lines for application-specific production requirements.
Technical configuration
Container compatibility
- Specification status
- Technical detail can be confirmed on enquiry.
BOV valve / bag compatibility
- No.of valve insertion and position head
- 2+2
Utilities
- Max. Gas consumption
- 2m³/min
- Gas pressure
- 0.6MPa
- Max. Gas consumption
- 1.5m³/min
- Gas pressure
- 0.8MPa
- Max. Gas consumption
- 3m³/min
Dimensions & weight
- Specification status
- Technical detail can be confirmed on enquiry.
Automation level
- Published automation wording
- Automatic
Production capability
Production capability
- Capacity
- ≥100cans/min
- Max. Gas consumption
- 2m³/min
- Max. Gas consumption
- 1.5m³/min
- Max. Gas consumption
- 3m³/min
Optional configurations
Available configuration
- Specification status
- Technical detail can be confirmed on enquiry.
Support
Installation & commissioning
- Project support
- Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.
Operator training
- Project support
- Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.
After-sales support
- Local engineering support
- Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.
Published specification reference
- Max. filling volume of single head
- 250ml(Max 500ml)
- Filling times of single filling head
- 2times
- ＞30~100ml
- ±1ml
- ＞100~200ml
- ±1.5ml
- ＞200~300ml
- ±2.5ml
- ＞200~300ml
- ±3ml
- ＞400ml
- ±3.5ml
- Capacity
- ≥100cans/min
- High
- 100~330mm
- Max. Gas consumption
- 2m³/min
- Gas pressure
- 0.6MPa
- No.of valve insertion and position head
- 2+2
- No. Of sealing head head
- 2times
- Sealing diameter
- 26.9~27.3mm±0.1mm
- Sealing depth
- 4.6~5.3mm±0.1mm
- Max. Gas consumption
- 1.5m³/min
- Gas pressure
- 0.8MPa
- Max. Propellant filling volume of single head
- 250ml(Max 500ml)
- Filling times of single propellant filling head
- 2times
- Max. Gas consumption
- 3m³/min
