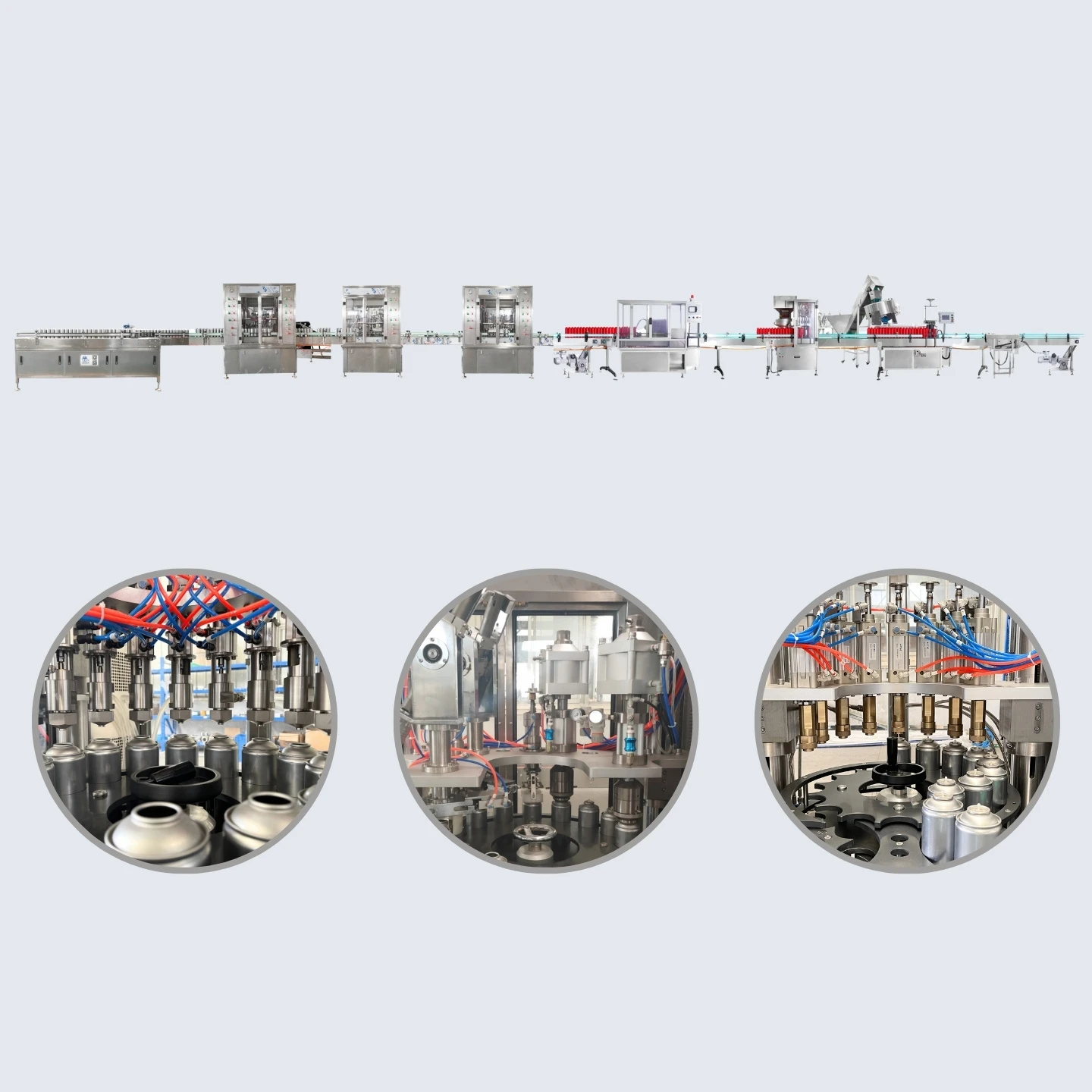

Aerosol Filling Line
Complete filling lines for application-specific production requirements.
Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.
Published technical snapshot
- Speed
- 100-120 cans/min
- Liquid filling volume (ml)
- 50-1000 ( can be customized)
- Applicable cans diameter (mm)
- 35-75 ( can be customized)
- Applicable cans height (mm)
- 100-330 ( can be customized)
Manufacturer-published values. Final configuration is confirmed for the project.
Applications
Suitable applications
- Potential application category
- Personal care
- Potential application category
- Household
- Potential application category
- Industrial
Key features
Complete filling lines for application-specific production requirements.
Technical configuration
Container compatibility
- Specification status
- Technical detail can be confirmed on enquiry.
BOV valve / bag compatibility
- Applicable valve (mm)
- 25.4 (1 inch)
Utilities
- Working pressure (MPa)
- 0.65-1
- Max gas consumption (m 3 /min)
- 6.4
Dimensions & weight
- Specification status
- Technical detail can be confirmed on enquiry.
Automation level
- Published automation wording
- Automatic
Production capability
Production capability
- Speed
- 100-120 cans/min
Optional configurations
Available configuration
- Applicable cans diameter (mm)
- 35-75 ( can be customized)
- Applicable cans height (mm)
- 100-330 ( can be customized)
- Liquid filling volume (ml)
- 50-1000 ( can be customized)
- Gas filling volume (ml)
- 20-700 (can be customized)
Support
Installation & commissioning
- Project support
- Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.
Operator training
- Project support
- Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.
After-sales support
- Local engineering support
- Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.
Published specification reference
- Model
- QGQ-Ⅱ 100CPM aerosolo Filling line
- Speed
- 100-120 cans/min
- Applicable valve (mm)
- 25.4 (1 inch)
- Applicable cans diameter (mm)
- 35-75 ( can be customized)
- Applicable cans height (mm)
- 100-330 ( can be customized)
- Liquid filling volume (ml)
- 50-1000 ( can be customized)
- Gas filling volume (ml)
- 20-700 (can be customized)
- Filling accuracy
- ≤1%
- Working pressure (MPa)
- 0.65-1
- Max gas consumption (m 3 /min)
- 6.4
