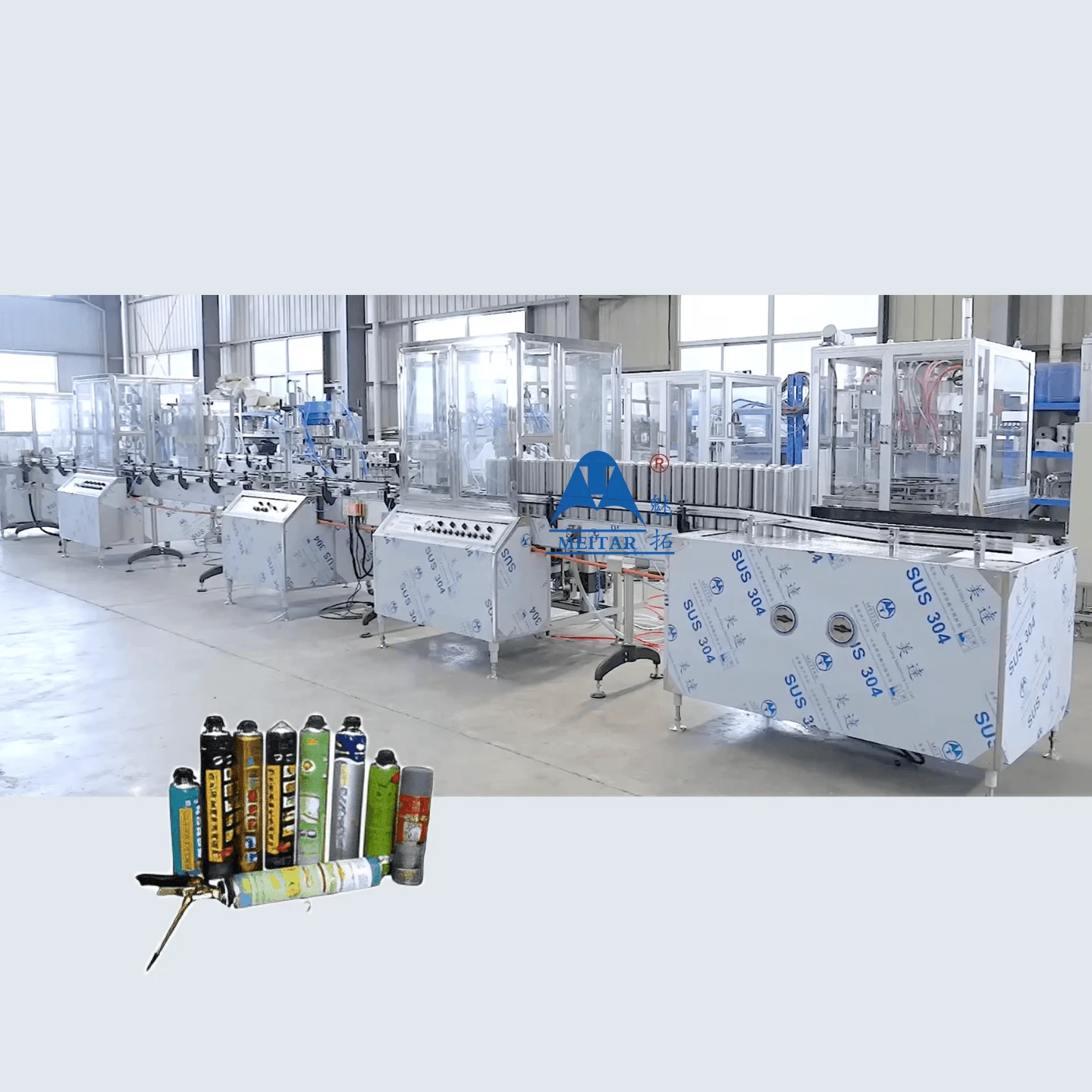

PU foam production line

Complete filling lines for application-specific production requirements.

Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.

Published technical snapshot

Manufacturer-published values. Final configuration is confirmed for the project.

Complete filling lines for application-specific production requirements.

Project support: Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.

Project support: Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.

Local engineering support: Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.

Model: qGQ Automatic Polyurethane PU Foam Spray Filling Machine Production Line
Production capacity: 1800-3600Cans per hour ( 30-60 cans per minute)
Applicable can diameter: 35-65mm
Applicable Can Height: 70-330mm
applicable valve: 1'' (25.4mm)
working pressure: 0.6-1MPa
gas consumpiton: 0.6-1m 3 /min
MDI filling volume: 10-500ml
pPG filling volume: 10-500ml
Liquid Filling accuracy: ≤±1%
DME filling volume: 10-500ml
LPG filling volume: 10-500ml
Weight Tolerance: ±0.5g
