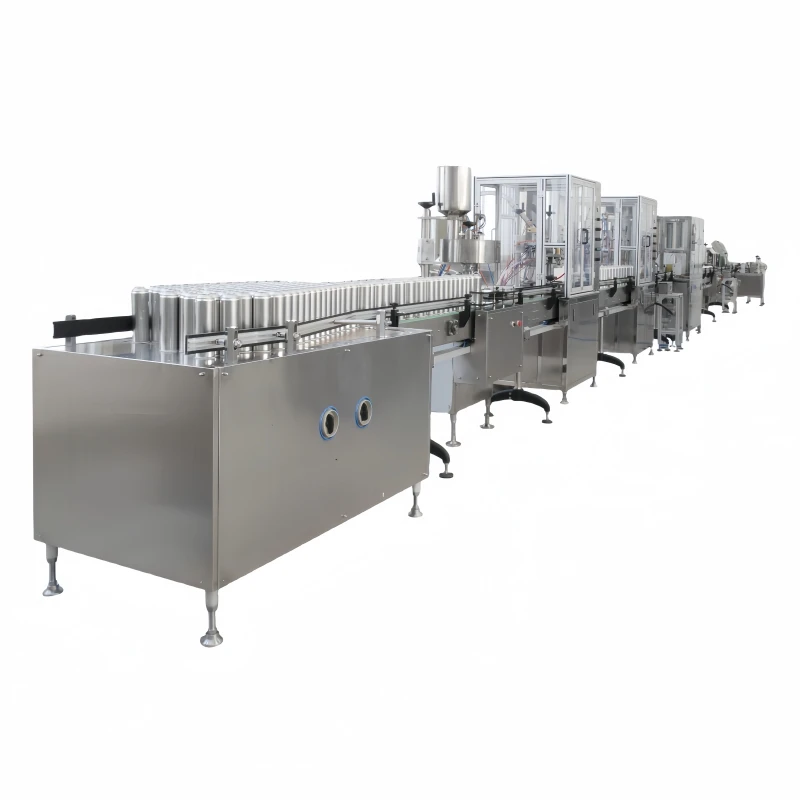

Aerosol Spray Paint Filling Machine
Aerosol filling machines for application-specific production requirements.
Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.
Published technical snapshot
- Gas consumption
- 5 m 3 /min
- Liquid filling volume
- 15~250 ml/head
- Applicable aerosol can diameter
- 35~65 mm
- Applicable aerosol can height
- 90~300 mm
Manufacturer-published values. Final configuration is confirmed for the project.
Applications
Suitable applications
- Potential application category
- Industrial
Key features
Aerosol filling machines for application-specific production requirements.
Technical configuration
Container compatibility
- Applicable aerosol can diameter
- 35~65 mm
- Applicable aerosol can height
- 90~300 mm
BOV valve / bag compatibility
- Specification status
- Technical detail can be confirmed on enquiry.
Utilities
- Gas consumption
- 5 m 3 /min
- Gas pressure
- 0.6~1 MPa
Dimensions & weight
- Specification status
- Technical detail can be confirmed on enquiry.
Automation level
- Published automation wording
- automatic
Production capability
Production capability
- Gas consumption
- 5 m 3 /min
- Production capacity
- 2400~3600 cans/hr
Optional configurations
Available configuration
- Specification status
- Technical detail can be confirmed on enquiry.
Support
Installation & commissioning
- Project support
- Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.
Operator training
- Project support
- Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.
After-sales support
- Local engineering support
- Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.
Published specification reference
- Model
- QGQ
- Liquid filling volume
- 15~250 ml/head
- Liquid filling accuracy
- ≤±1%
- Propellant filling volume
- 10~250 ml/head
- Propellant filling accuracy
- ≤±1%
- Applicable aerosol can diameter
- 35~65 mm
- Applicable aerosol can height
- 90~300 mm
- Number of dropped balls
- 1-4 pcs/time
- Gas consumption
- 5 m 3 /min
- Gas pressure
- 0.6~1 MPa
- Production capacity
- 2400~3600 cans/hr
