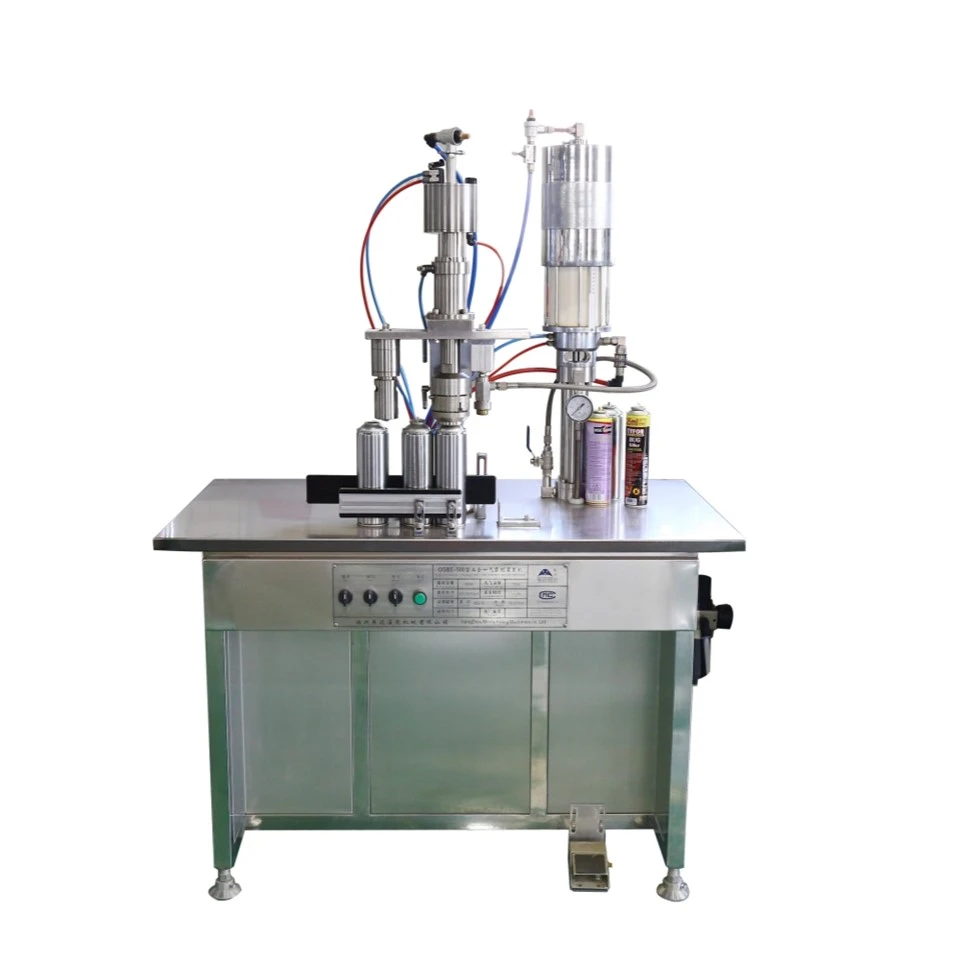

3 in 1 Aerosol Filling Machine
Semi-automatic systems for application-specific production requirements.
Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.
Published technical snapshot
- Max. gas consumption
- 0.6 m³/min
- Max.liquid filling volume
- 500 ml
- Applicable aerosol can diameter
- 35~70 mm
- Applicable aerosol can height
- 80~315 mm
Manufacturer-published values. Final configuration is confirmed for the project.
Applications
Suitable applications
- Potential application category
- Personal care
- Potential application category
- Industrial
Key features
Semi-automatic systems for application-specific production requirements.
Technical configuration
Container compatibility
- Applicable aerosol can diameter
- 35~70 mm
- Applicable aerosol can height
- 80~315 mm
BOV valve / bag compatibility
- Applicable valve
- 1'' (25.4 mm)
Utilities
- Gas pressure
- 0.5~0.7Mpa
- Max. gas consumption
- 0.6 m³/min
Dimensions & weight
- Weight
- 250Kg
Automation level
- Published automation wording
- semi-automatic
Production capability
Production capability
- Max. gas consumption
- 0.6 m³/min
- Production capacity
- 800~1200cans/hour
Optional configurations
Available configuration
- Specification status
- Technical detail can be confirmed on enquiry.
Support
Installation & commissioning
- Project support
- Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.
Operator training
- Project support
- Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.
After-sales support
- Local engineering support
- Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.
Published specification reference
- Model
- QGBS-500
- Sealing diameter
- φ26.5 ~ φ27.5 mm
- Sealing depth
- 5.0 ~ 6.0 mm
- Applicable valve
- 1'' (25.4 mm)
- Applicable aerosol can diameter
- 35~70 mm
- Applicable aerosol can height
- 80~315 mm
- Max.liquid filling volume
- 500 ml
- Liquid repeat filling accuracy
- ≤±1.0%
- Max. propellant filling volume
- 500 ml
- Propellant repeat filling accuracy
- ≤±1.0%
- Gas pressure
- 0.5~0.7Mpa
- Max. gas consumption
- 0.6 m³/min
- Production capacity
- 800~1200cans/hour
- Weight
- 250Kg
