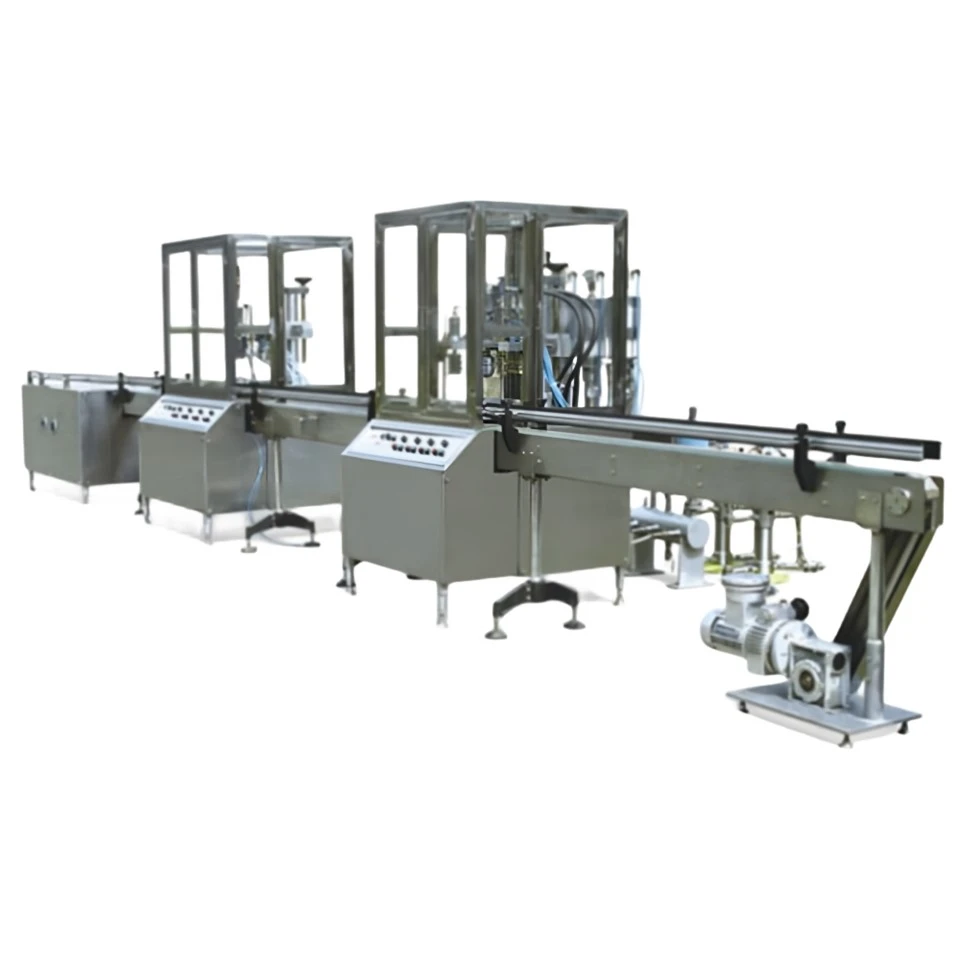

Aerosol Insecticide Filling Machine
Aerosol filling machines for application-specific production requirements.
Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.
Published technical snapshot
- Speed range
- 4.5-23r/min
- Filling volume
- 10~250ml/head
- Diameter of aerosol can
- 35~65mm
- Height of aerosol can
- 90~330mm
Manufacturer-published values. Final configuration is confirmed for the project.
Applications
Suitable applications
- Potential application category
- Household
Key features
Aerosol filling machines for application-specific production requirements.
Technical configuration
Container compatibility
- Diameter of aerosol can
- 35~65mm
- Height of aerosol can
- 90~330mm
- Diameter of aerosol can
- 35~70mm
- Height of aerosol can
- 100~300mm
BOV valve / bag compatibility
- Specification status
- Technical detail can be confirmed on enquiry.
Utilities
- Explosion-proof motor power
- 0.75KW
- Gas pressure
- 0.6MPa
- Heating power
- 3×10KW
- Machine power
- 0.75KW
Dimensions & weight
- Specification status
- Technical detail can be confirmed on enquiry.
Automation level
- Published automation wording
- manual
Production capability
Production capability
- Speed range
- 4.5-23r/min
- Output capacity
- 50~60cans/min
- Output capacity
- 60~65CPM
- Output capacity
- 50~60CPM
Optional configurations
Available configuration
- Specification status
- Technical detail can be confirmed on enquiry.
Support
Installation & commissioning
- Project support
- Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.
Operator training
- Project support
- Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.
After-sales support
- Local engineering support
- Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.
Published specification reference
- Speed range
- 4.5-23r/min
- Explosion-proof motor power
- 0.75KW
- Diameter of aerosol can
- 35~65mm
- Height of aerosol can
- 90~330mm
- Output capacity
- 50~60cans/min
- Filling volume
- 10~250ml/head
- Filling accuracy
- ≤±1%
- Inflation accuracy
- ≤±1%
- Inflation volume
- 10~250ml/head
- Gas pressure
- 0.6MPa
- Weighing accuracy
- ≤±1g
- Weighing range
- 0~1500g
- Output capacity
- 60~65CPM
- Heating power
- 3×10KW
- Temperature control accuracy
- ±1℃
- Machine power
- 0.75KW
- Diameter of aerosol can
- 35~70mm
- Height of aerosol can
- 100~300mm
- Output capacity
- 50~60CPM
