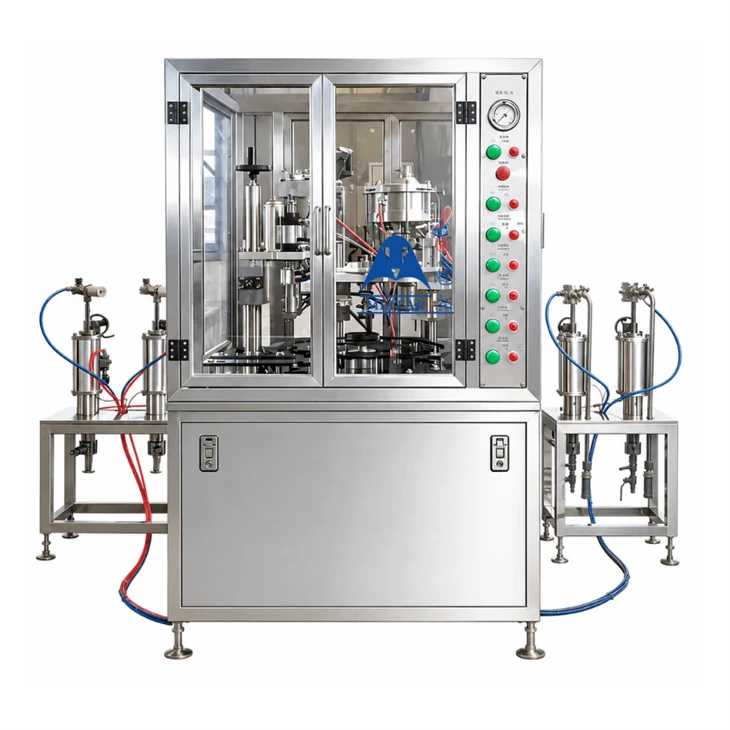

QGQ750-B Monobloc Aerosol Filling Machine
Complete filling lines for application-specific production requirements.
Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.
Published technical snapshot
- Max. Air Consumption
- 4.5m 3 /min
- Single-head filling volume
- 10-300ml
- Applicable aerosol can diameter
- 35-66mm
- Applicable aerosol can Height
- 70-330mm
Manufacturer-published values. Final configuration is confirmed for the project.
Applications
Suitable applications
- Specification status
- Technical detail can be confirmed on enquiry.
Key features
Complete filling lines for application-specific production requirements.
Technical configuration
Container compatibility
- Applicable aerosol can diameter
- 35-66mm
- Applicable aerosol can Height
- 70-330mm
- Applicable aerosol can Opening Internal Diameter
- 1" ( 25.4mm )
- Applicable aerosol can valve Size
- 1" ( 25.4mm )
BOV valve / bag compatibility
- Applicable aerosol can valve Size
- 1" ( 25.4mm )
Utilities
- Working Pressure
- 0.5-0.7MPa
- Max. Air Consumption
- 4.5m 3 /min
Dimensions & weight
- dimensions
- 1100 (L) ✖️930 (W) ✖️1870 (H) mm
Automation level
- Specification status
- Technical detail can be confirmed on enquiry.
Production capability
Production capability
- Max. Air Consumption
- 4.5m 3 /min
- production capacity
- 30-60cans/min
Optional configurations
Available configuration
- Specification status
- Technical detail can be confirmed on enquiry.
Support
Installation & commissioning
- Project support
- Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.
Operator training
- Project support
- Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.
After-sales support
- Local engineering support
- Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.
Published specification reference
- Model
- QGQ750-B Monobloc Aerosol Filling machine
- Applicable aerosol can diameter
- 35-66mm
- Applicable aerosol can Height
- 70-330mm
- Applicable aerosol can Opening Internal Diameter
- 1" ( 25.4mm )
- Applicable aerosol can valve Size
- 1" ( 25.4mm )
- Single-head filling volume
- 10-300ml
- Total filling volume
- 30-900ml
- Repeat filling Accuracy
- ≤±1%
- Working Pressure
- 0.5-0.7MPa
- Max. Air Consumption
- 4.5m 3 /min
- production capacity
- 30-60cans/min
- dimensions
- 1100 (L) ✖️930 (W) ✖️1870 (H) mm
- 4 Gas / propellant filling heads
- 8 Gas / propellant filling heads
