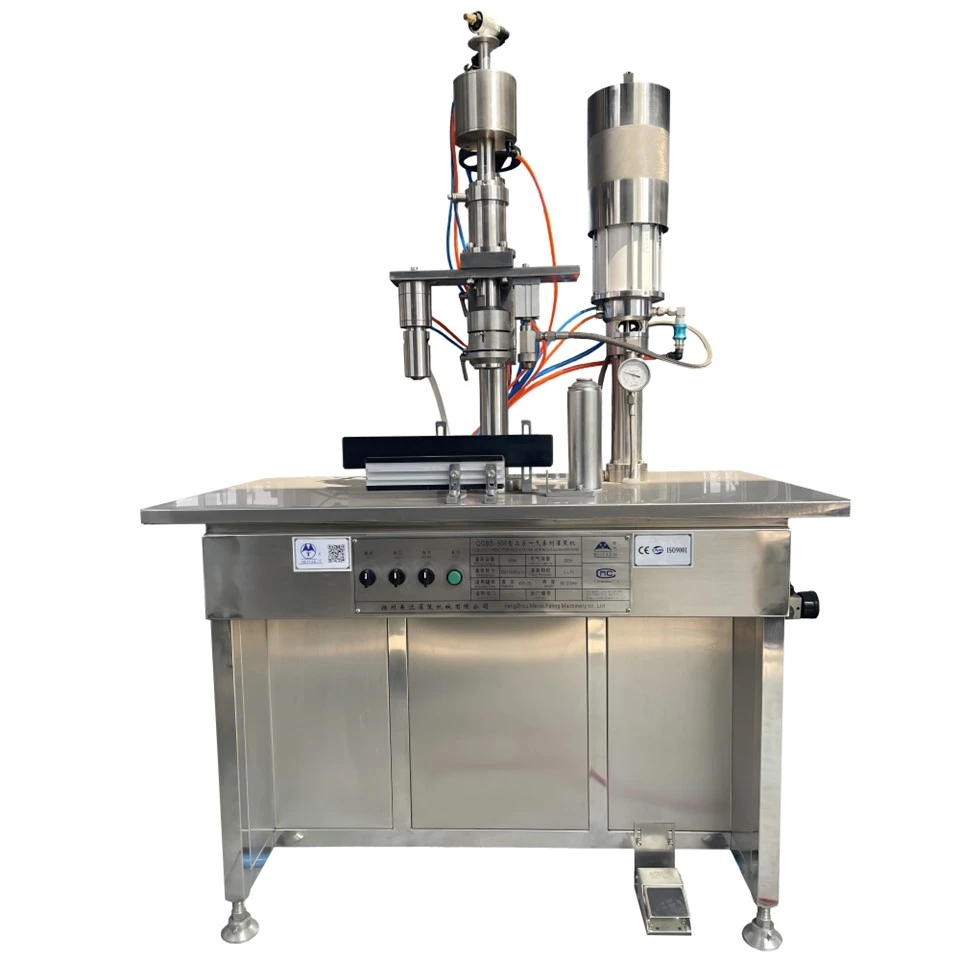

Hair Spray Aerosol Filling Machine

Published technical snapshot

Max. gas consumption

0.6 m³/min

Max.liquid filling volume

500 ml

Applicable aerosol can diameter

35~70 mm

Applicable aerosol can height

80~315 mm

Manufacturer-published values. Final configuration is confirmed for the project.

Applications

Suitable applications

Specification status

Technical detail can be confirmed on enquiry.

Key features

Semi-automatic systems for application-specific production requirements.

Technical configuration

Container compatibility

Applicable aerosol can diameter

35~70 mm

Applicable aerosol can height

80~315 mm

BOV valve / bag compatibility

Applicable valve

1'' (25.4 mm)

Utilities

Electrical Components Check

Inspect wiring and electrical connections for wear, corrosion, or damage. Ensure that safety switches and emergency stops are functioning correctly.

Gas pressure

0.5~0.7Mpa

Max. gas consumption

0.6 m³/min

Dimensions & weight

Specification status

Technical detail can be confirmed on enquiry.

Automation level

Published automation wording

semi-automatic

Production capability

Production capability

Max. gas consumption

0.6 m³/min

Production capacity

800~1200cans/hour

Optional configurations

Available configuration

Specification status

Technical detail can be confirmed on enquiry.

Support

Installation & commissioning

Project support

Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.

Operator training

Project support

Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.

After-sales support

Local engineering support

Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.

Published specification reference

Inspection

Check for any visible signs of wear or damage. Ensure all connections are secure and that there are no leaks.

Cleaning

Clean the machine's exterior and interior components to remove any residual product. Pay special attention to the filling nozzles and valves to prevent clogs.

Lubrication

Ensure all moving parts are adequately lubricated according to the manufacturer's specifications. Check the lubricating oil levels in the lubricator and add oil as needed.

Functionality Check

Test the operational features of the machine, such as the filling, sealing, and capping functions, to ensure they are working correctly.

Detailed Inspection

Inspect seals and gaskets for wear and replace them if necessary. Check for any unusual noises or vibrations during operation.

Filter Maintenance

Clean or replace air filters and other filtration components to ensure optimal airflow and prevent contamination.

Calibration

Check the calibration of filling volumes and adjust if necessary to maintain accuracy.

Electrical Components Check

Inspect wiring and electrical connections for wear, corrosion, or damage. Ensure that safety switches and emergency stops are functioning correctly.

Pneumatic System Check

Inspect hoses and fittings for leaks or signs of wear. Test the pressure settings to ensure they are within the recommended range.

Comprehensive Inspection

Perform a thorough inspection of all machine components, including the filling heads, conveyor belts, and control systems. Look for any signs of corrosion or rust, especially on metal parts.

Calibration and Testing

Conduct full calibration of the filling system, verifying the accuracy of volumes dispensed. Test the machine under production conditions to ensure everything functions as expected.

Preventive Replacement

Replace any worn or suspect parts, such as seals, hoses, and filters, even if they appear functional.

Sealing diameter

26.5 ~ 27.5 mm

Sealing depth

5.0 ~ 6.0 mm

Applicable valve

1'' (25.4 mm)

Applicable aerosol can diameter

35~70 mm

Applicable aerosol can height

80~315 mm

Max.liquid filling volume

500 ml

Liquid repeat filling accuracy

≤±1.0%

Max. propellant filling volume

500 ml

Propellant repeat filling accuracy

≤±1.0%

Gas pressure

0.5~0.7Mpa

Max. gas consumption

0.6 m³/min

Production capacity

800~1200cans/hour
