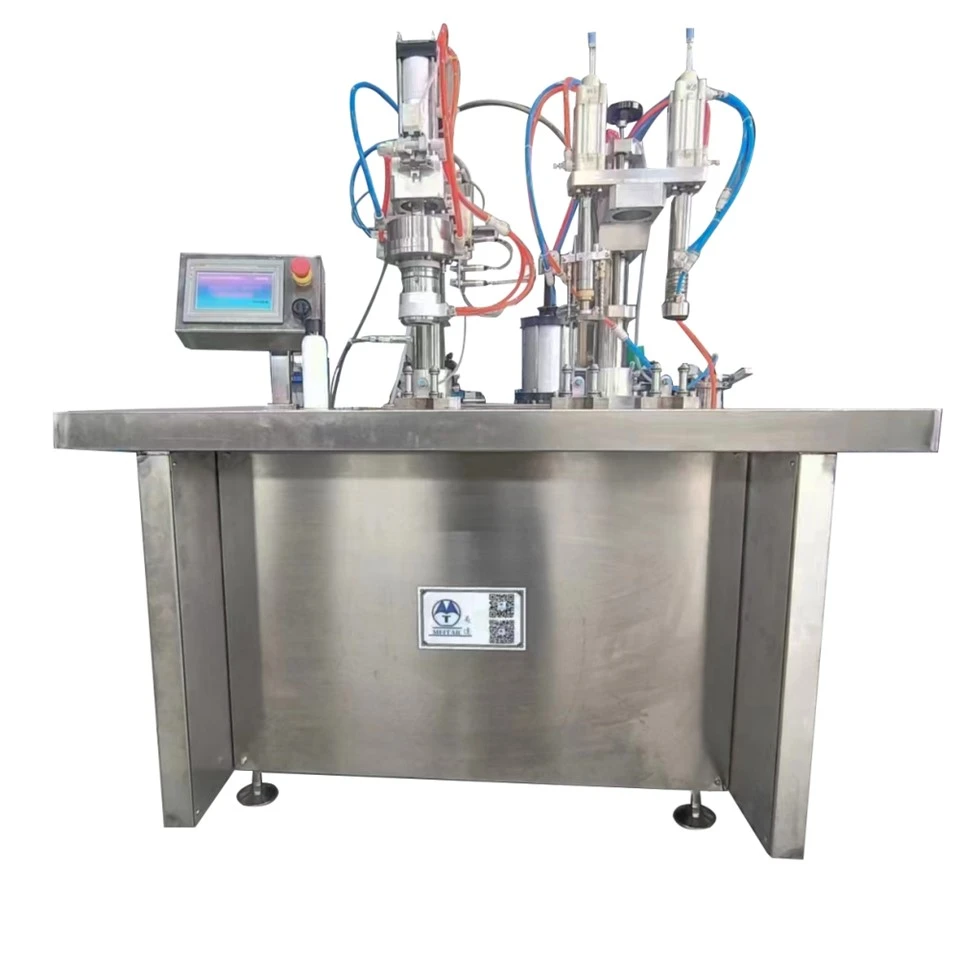

Bag-on-valve Filling Machine
Bag-on-Valve filling equipment for a configured production process.
Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.
Published technical snapshot
- Production Capacity
- 10 ~15 cans/min
- Maximum filling capacity of single-head paste (can be customized)
- 190 ml
- Applicable can diameter
- 35~66mm
- Applicable can height
- 88~250mm
Manufacturer-published values. Final configuration is confirmed for the project.
Applications
Suitable applications
- Potential application category
- Personal care
- Potential application category
- Household
- Potential application category
- Pharmaceutical
Key features
Bag-on-Valve filling equipment for a configured production process.
Technical configuration
Container compatibility
- Applicable can diameter
- 35~66mm
- Applicable can height
- 88~250mm
BOV valve / bag compatibility
- Applicable valve
- 1'' bag-0n-valve
Utilities
- Working Pressure
- 0.6 ~ 0.8 Mpa
- Air Consumption
- 0.6 m³/min
Dimensions & weight
- Specification status
- Technical detail can be confirmed on enquiry.
Automation level
- Specification status
- Technical detail can be confirmed on enquiry.
Production capability
Production capability
- Production Capacity
- 10 ~15 cans/min
- Air Consumption
- 0.6 m³/min
Optional configurations
Available configuration
- Maximum filling capacity of single-head paste (can be customized)
- 190 ml
- Isopentane to paste ratio (can be customized)
- 3 ~ 7 ％(W/W)
Support
Installation & commissioning
- Project support
- Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.
Operator training
- Project support
- Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.
After-sales support
- Local engineering support
- Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.
Published specification reference
- Applicable valve
- 1'' bag-0n-valve
- Applicable can diameter
- 35~66mm
- Applicable can height
- 88~250mm
- Gas Filling Accuracy
- ≤±0.03 Mpa
- Sealing Accuracy
- ≤3‰
- Production Capacity
- 10 ~15 cans/min
- Maximum filling capacity of single-head paste (can be customized)
- 190 ml
- Isopentane to paste ratio (can be customized)
- 3 ~ 7 ％(W/W)
- Working Pressure
- 0.6 ~ 0.8 Mpa
- Air Consumption
- 0.6 m³/min
