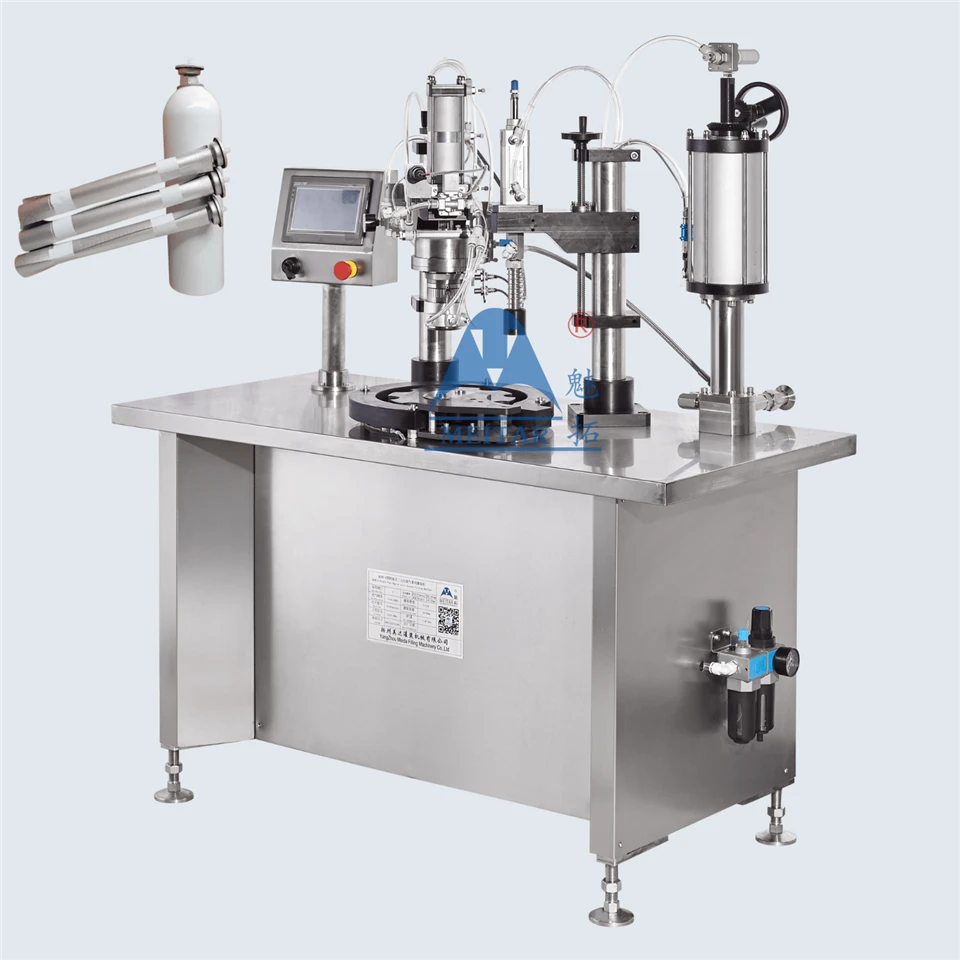

QGBE-A BOV Aerosol Filling Machine
Bag-on-Valve filling equipment for a configured production process.
Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.
Published technical snapshot
- Capacity
- 15-20 containers per mintue
- Liquid filling volume
- 30-300ml
- Application Diameter of Container
- 35-53mm
- Application Height of Container
- 60-160mm
Manufacturer-published values. Final configuration is confirmed for the project.
Applications
Suitable applications
- Potential application category
- Personal care
- Potential application category
- Household
- Potential application category
- Industrial
- Potential application category
- Food & beverage
Key features
Bag-on-Valve filling equipment for a configured production process.
Technical configuration
Container compatibility
- Application Diameter of Container
- 35-53mm
- Application Height of Container
- 60-160mm
BOV valve / bag compatibility
- Application Valve Size
- 1''
Utilities
- Operating Pressure
- 0.6-0.8MPa
- Air Consumption
- 1.5m 3 /min
Dimensions & weight
- Specification status
- Technical detail can be confirmed on enquiry.
Automation level
- Published automation wording
- Semi-Automatic
Production capability
Production capability
- Capacity
- 15-20 containers per mintue
- Air Consumption
- 1.5m 3 /min
Optional configurations
Available configuration
- Specification status
- Technical detail can be confirmed on enquiry.
Support
Installation & commissioning
- Project support
- Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.
Operator training
- Project support
- Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.
After-sales support
- Local engineering support
- Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.
Published specification reference
- Application Valve Size
- 1''
- Application Diameter of Container
- 35-53mm
- Application Height of Container
- 60-160mm
- Gas Filling Accuracy
- ≤±0.04MPa
- Liquid filling volume
- 30-300ml
- Liquid Filling Accuracy
- ≤±1%
- Capacity
- 15-20 containers per mintue
- Operating Pressure
- 0.6-0.8MPa
- Air Consumption
- 1.5m 3 /min
