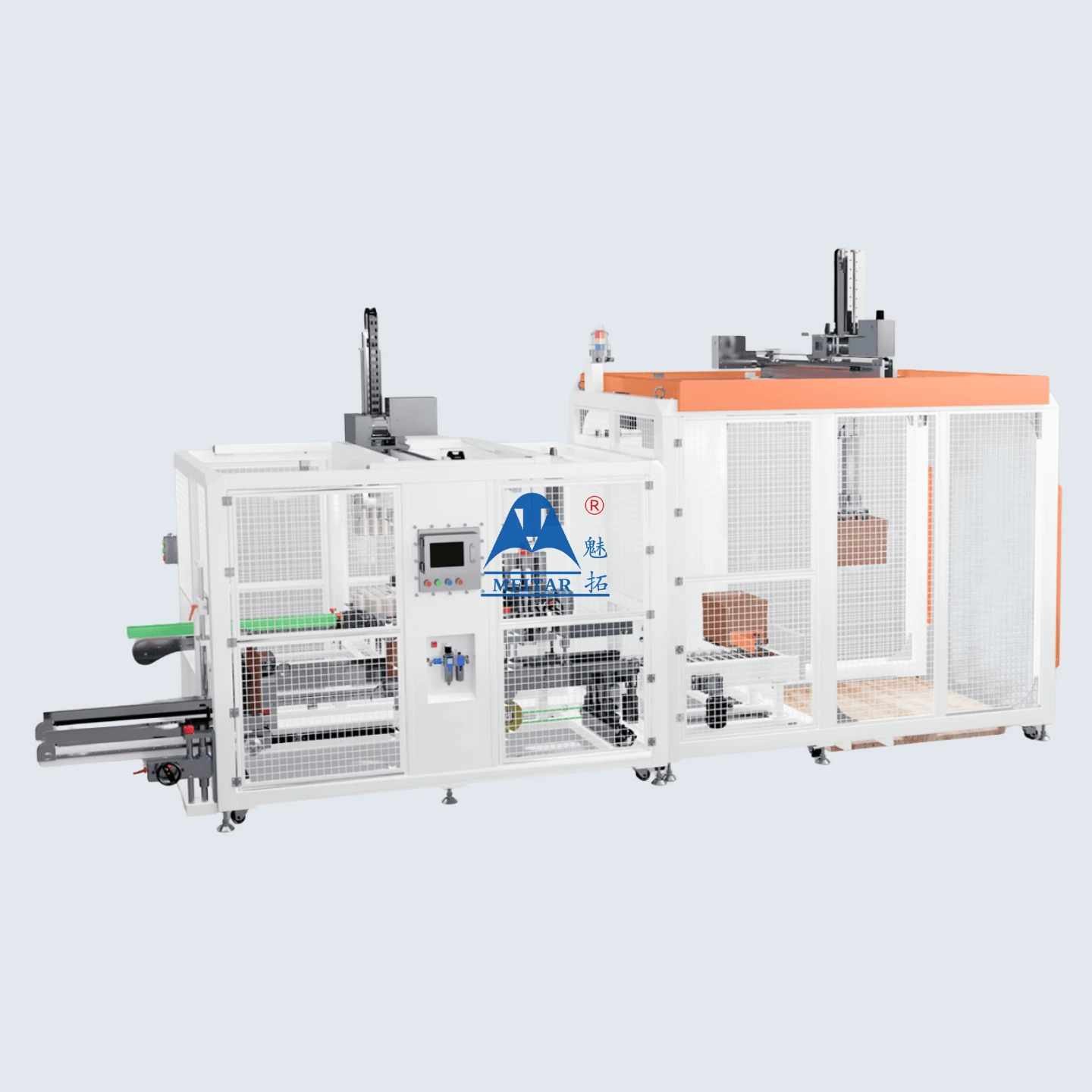

End Of Packing Machine For Aerosol Packaging Solutions
Supporting packaging equipment for an integrated production process.
Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.
Published technical snapshot
- Packing Speed
- 6-10 cases per minute
- Working Pressure
- 5-6 kg
- Power
- 6kw
- Voltage
- Phase 3 380V-50Hz
Manufacturer-published values. Final configuration is confirmed for the project.
Applications
Suitable applications
- Specification status
- Technical detail can be confirmed on enquiry.
Key features
Supporting packaging equipment for an integrated production process.
Technical configuration
Container compatibility
- Specification status
- Technical detail can be confirmed on enquiry.
BOV valve / bag compatibility
- Specification status
- Technical detail can be confirmed on enquiry.
Utilities
- Voltage
- Phase 3 380V-50Hz
- Power
- 6kw
- Working Pressure
- 5-6 kg
- Working Pressure
- 4.5-6 kg
- Air Consumption
- 260 L/min
- Voltage
- 3-phase 380V, 5OHz
- Power
- 6 KW
- Rated Voltage
- 220 V
Dimensions & weight
- Applicable Case Dimension
- Length 250 - 500mm , Width 150 - 400mm
- Max. Loading Weight
- 20-25kg
- Machine Weight
- 1200 kg
- Max Item Weight
- Depends on material shape, quality, fixture use, and speed; typically up to 40-45 kg (including gripper)
- Equipment Weight
- 800 kg
- Pallet Dimensions
- L1300mm x W1100mm x H150mm
- Robot Body Weight
- 400 kg
Automation level
- Published automation wording
- manual
Production capability
Production capability
- Packing Speed
- 6-10 cases per minute
- Capacity
- Up to 8 cycles per minute, depending on stacking arrangement, item size, weight, and carton texture
- Air Consumption
- 260 L/min
- Palletizing Speed
- 6-10 cycles/min (Actual capacity varies depending on product type)
Optional configurations
Available configuration
- Gripper
- Customized
Support
Installation & commissioning
- Project support
- Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.
Operator training
- Project support
- Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.
After-sales support
- Local engineering support
- Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.
Published specification reference
- Packing Speed
- 6-10 cases per minute
- Voltage
- Phase 3 380V-50Hz
- Power
- 6kw
- Applicable Case Dimension
- Length 250 - 500mm , Width 150 - 400mm
- Max. Loading Weight
- 20-25kg
- Machine Weight
- 1200 kg
- Working Pressure
- 5-6 kg
- Sealing Method
- Tape
- Gripper
- Customized
- Axes
- 3 basic axes (x, y, z) and a 360° rotation axis
- Max Item Weight
- Depends on material shape, quality, fixture use, and speed; typically up to 40-45 kg (including gripper)
- Capacity
- Up to 8 cycles per minute, depending on stacking arrangement, item size, weight, and carton texture
- Conveyor
- Standard width of 600 mm
- Pallet Size
- 1000mm × 1000mm × 150mm
- Max Pallet Size
- 1200mm x 1200mm × 150mm
- Operating Height
- Floor to ceiling height
- Noise Level
- Less than 70 dB
- Working Pressure
- 4.5-6 kg
- Equipment Weight
- 800 kg
- Air Consumption
- 260 L/min
- Voltage
- 3-phase 380V, 5OHz
- Power
- 6 KW
- Palletizing Speed
- 6-10 cycles/min (Actual capacity varies depending on product type)
- Payload
- 30 KG
- Working Radius
- 1800 mm
- Pallet Dimensions
- L1300mm x W1100mm x H150mm
- Max Joint Speed
- J1: 120°/s; J2: 120°/s; J3: 140°/s; J4-J5: 180°/s
- Repeatability
- ±0.1 mm
- Communication
- TCP/IP and Modbus
- Protection Rating
- Equivalent to IP54
- Operating Temperature Range
- 0-45°C, 20-80% RH (non-condensing)
- Rated Voltage
- 220 V
- PowerConsumption
- 2 KW
- Robot Body Weight
- 400 kg
- Footprint
- Approx. W1.9m * L3.4m (approx. 6 m² for dual-station palletizing)
