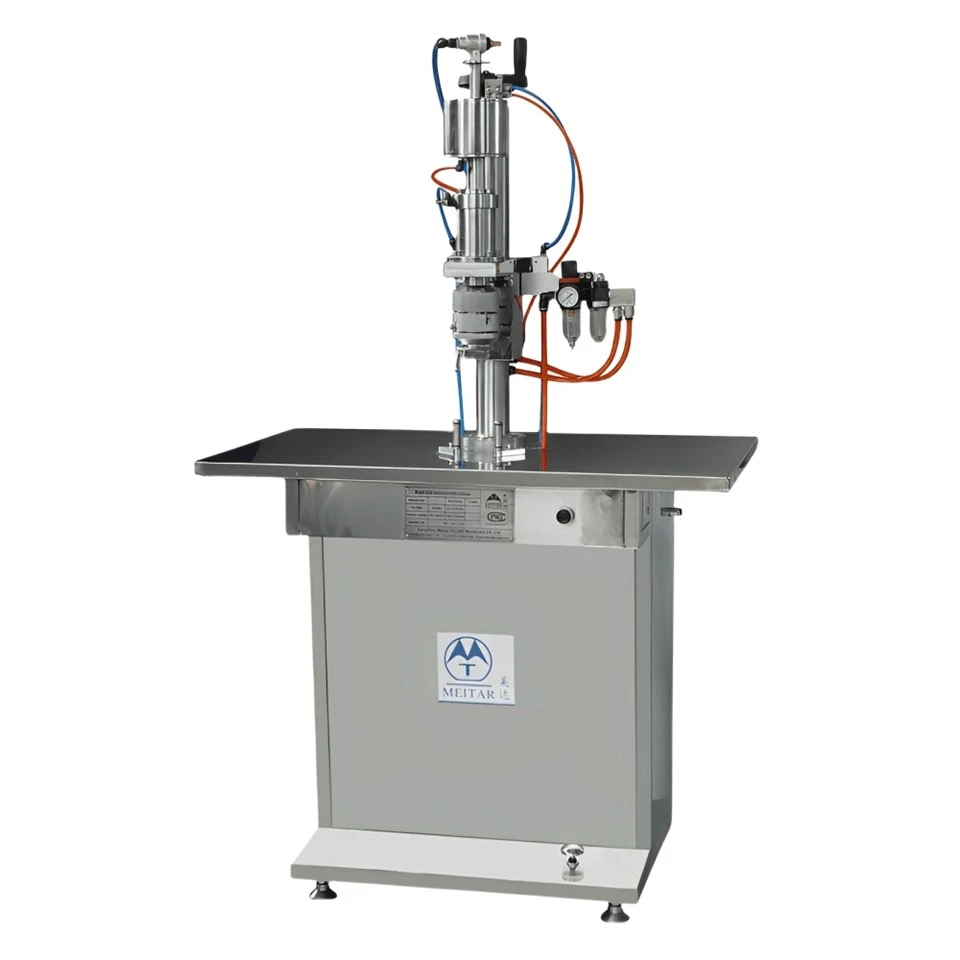

Aerosol Can Crimping Machine
Semi-automatic systems for application-specific production requirements.
Configured project enquiry. Final configuration, availability, freight and regional terms are confirmed in writing.
Published technical snapshot
- Max. air consumption
- 12 L/min
- Applicable can diameter
- 20 ~ 100mm
- Applicable can height
- 60 ~ 350mm
- Working pressure
- 0.45 ~ 0.7Mpa
Manufacturer-published values. Final configuration is confirmed for the project.
Applications
Suitable applications
- Potential application category
- Personal care
- Potential application category
- Household
- Potential application category
- Industrial
- Potential application category
- Pharmaceutical
Key features
Semi-automatic systems for application-specific production requirements.
Technical configuration
Container compatibility
- Applicable can diameter
- 20 ~ 100mm
- Applicable can height
- 60 ~ 350mm
BOV valve / bag compatibility
- Applicable valve
- 1''
Utilities
- Working pressure
- 0.45 ~ 0.7Mpa
- Max. air consumption
- 12 L/min
Dimensions & weight
- Specification status
- Technical detail can be confirmed on enquiry.
Automation level
- Published automation wording
- semi-automatic
Production capability
Production capability
- Max. air consumption
- 12 L/min
- Production capacity
- 1000 ~ 1500cans/h
Optional configurations
Available configuration
- Specification status
- Technical detail can be confirmed on enquiry.
Support
Installation & commissioning
- Project support
- Installation and commissioning requirements can be reviewed during project scoping. Any coordination, site readiness, integration, travel and acceptance requirements are agreed for the selected project.
Operator training
- Project support
- Operator and technical-personnel training requirements can be discussed in relation to the agreed equipment configuration and operating requirements. Scope, delivery method and timing are confirmed for the selected project.
After-sales support
- Local engineering support
- Servicing, troubleshooting, preventative maintenance and spare-parts requirements can be discussed for the selected equipment. Availability, response timing and parts holdings are confirmed for each project; they are not represented as guaranteed stock.
Published specification reference
- Sealing diameter
- (φ26.5 ~ φ28.5)±0.15mm
- Sealing depth
- (0 ~ 7.0)±0.15mm
- Applicable valve
- 1''
- Applicable can diameter
- 20 ~ 100mm
- Applicable can height
- 60 ~ 350mm
- Working pressure
- 0.45 ~ 0.7Mpa
- Max. air consumption
- 12 L/min
- Production capacity
- 1000 ~ 1500cans/h
